Knife Gate Valves

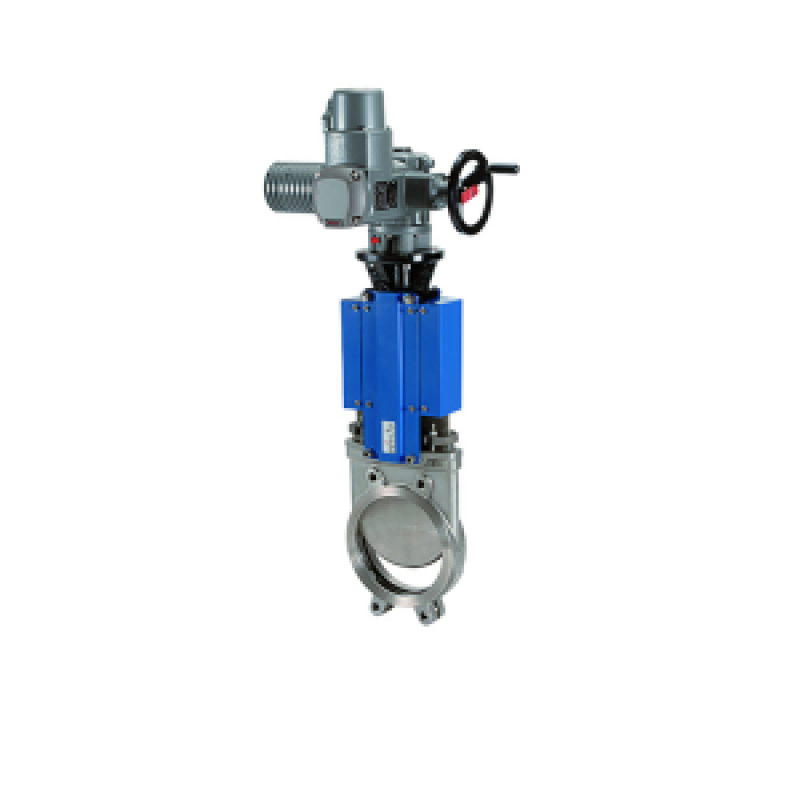

| Model: | Uni-direct knife gate valve | Material body: | Stainless steel CF8M |
| Connection: | Flanged PN10 | Material disc: | St.St. AISI 316 check PDF |
| Temperature: | -20°C / +130°C | Material seat: | Stainless steel CF8M |
| Pressure: | up to DN200 10 bar > see PDF | Actuating: | Auma actuator 400 Volt AC |
| Electric actuator | AUMA SA Multi turn | ||
| IP code: | IP 68 | Temperature: | Ambiant -25°C / +55°C |
| Power: | 400 Volt AC | Model: | SA |
| Body material: | Aluminium epoxy | Duty factor: | S4-25% / 10 cycles by hour. |
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
| SKU: | YGT-1730400000 |
| Body material | Stainless steel-CF8M |
| Disc / Ball / Wedge | Stainless steel-CF8M-316 |
| Seat | SS-ASTM-A351-CF8M-316 |
