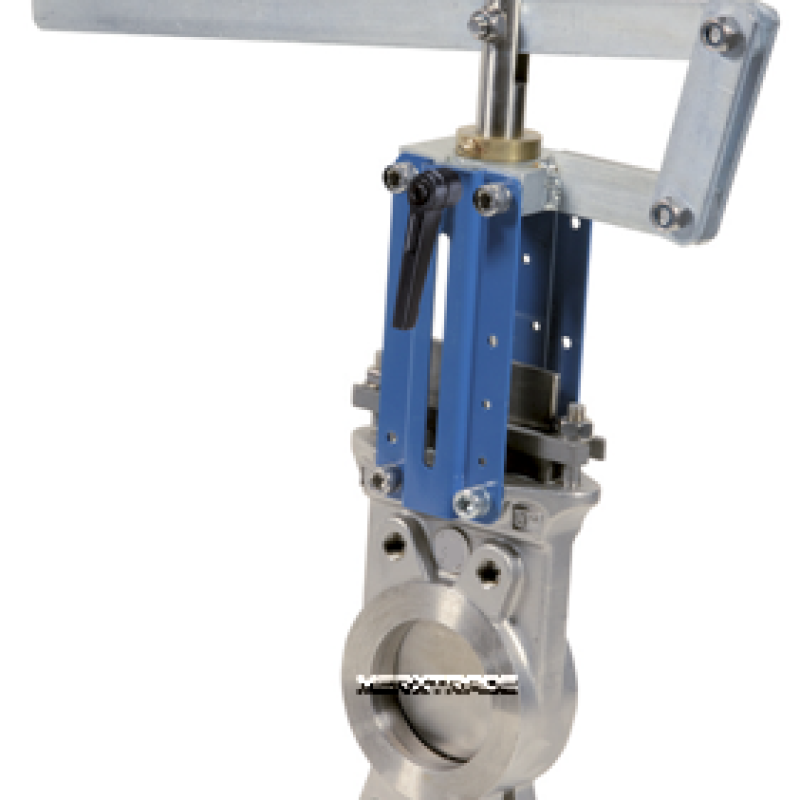

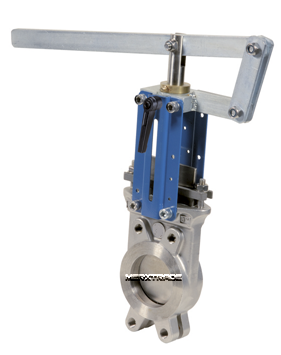

YQT-G with Lever UDT -EPDM

Model:

Knife gate valve

Material body:

Stainless steel CF8M 316


Actuating:

Lever operated

Material wedge:

Stainless steel CF8M 316

Connection:

Between flanges PN10

Material seat:

EPDM

Temperature:

-15 ° C / + 110 ° C



Pressure:

DN50 up to DN200 PN10

Pressure:

DN250 PN8   DN300 PN6 DN350/400 4bar




The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU:YQT-IG54032
Body materialStainless steel-CF8M-316
Disc / Ball / WedgeStainlessSteel-1.4408-316
SeatEPDM
SKUProduct NameDNLength
YQT-IG54032

YQT-G with Lever UDT -EPDM-DN50

5040
GTI-5409172065

YQT-G with Lever UDT -EPDM-DN65

6540
GTI-5409172080

YQT-G with Lever UDT -EPDM-DN80

8050
GTI-5409172100

YQT-G with Lever UDT -EPDM-DN100

10050
GTI-5409172125

YQT-G with Lever UDT -EPDM-DN125

12550
GTI-5409172150

YQT-G with Lever UDT -EPDM-DN150

15060
GTI-5409172200

YQT-G with Lever UDT -EPDM-DN200

20060
GTI-5409172250

YQT-G with Lever UDT -EPDM-DN250

25070
GTI-5409172300

YQT-G with Lever UDT -EPDM-DN300

30070
