Name: SS 304 | YQT S-gate + EPDM
Brand: Yuniqtech LLC USA
SKU: YQT-5402179
Availability: InStock

Email to a Friend

SS 304 | YQT S-gate + EPDM

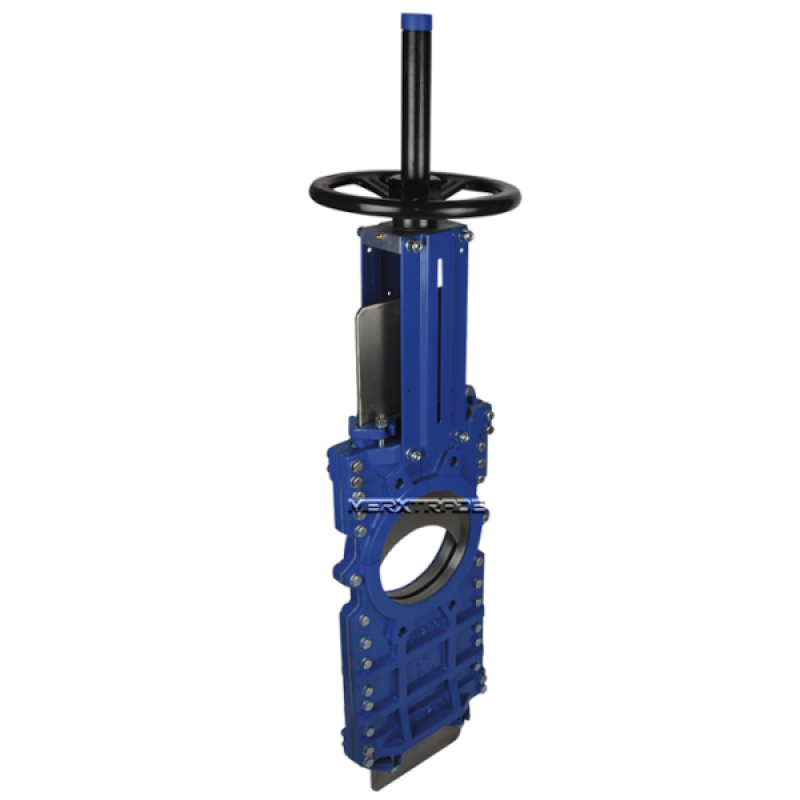

Knife gate valve handwheel operated through conduit bidirectional S-gate cast iron PN10 EPDM seat

Model:	Through conduit bidirectional	Material body:	Cast ironEN GJL-250
Connection:	Wafer	Material gate:	Stainless steelAISI 304
Pressure:	DN50-125=10 bar > see PDF	Material seat:	EPDM (NBR on request)
Temperature:	-15°C / +130°C EPDM	Operation:	Non-rising handwheel

Note: Dn 50-65 and DN 400 and above on request.

The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.

SKU	Product Name	DN	Length
YQT-5402179050	YQT-BD S-gate cast iron PN10 EPDM seat DN50	50	40
YQT-5402179065	YQT-BD S-gate cast iron PN10 EPDM seat DN65	65	40
YQT-5402179100	YQT-BD S-gate cast iron PN10 EPDM seat DN100	100	50
YQT-5402179125	YQT-BD S-gate cast iron PN10 EPDM seat DN125	125	50
YQT-5402179150	YQT-BD S-gate cast iron PN10 EPDM seat DN150	150	60
YQT-5402179200	YQT-BD S-gate cast iron PN10 EPDM seat DN200	200	60
YQT-5402179250	YQT-BD S-gate cast iron PN10 EPDM seat DN250	250	70
YQT-5402179300	YQT-BD S-gate cast iron PN10 EPDM seat DN300	300	70
YQT-5402179350	YQT-BD S-gate cast iron PN10 EPDM seat DN350	350	96
YQT-5402179400	YQT-BD S-gate cast iron PN10 EPDM seat DN400	400	100
YQT-5402179450	YQT-BD S-gate cast iron PN10 EPDM seat DN450	450	106
YQT-5402179500	YQT-BD S-gate cast iron PN10 EPDM seat DN500	500	110
YQT-5402179600	YQT-BD S-gate cast iron PN10 EPDM seat DN600	600	110
